Roofing sheets

Sandwich panels – Corrugated panels

FALK 1000 GL

Core size (mm)	R-waarde (m2K/W)	Rc-waarde NEN 1068 (m2K/W)	Rc-waarde NTA 8800 (m2K/W)	Fire class	Fire protection	Features
43	2,56	2,52	2,67	B-s2,d0	EW30	Corrugated panel Plastisol 200 µm exterior coating in various colours as standard
60	3,34	3,31	3,47	B-s2,d0	EW60, EI20	Interior available in steel sheet with interior/agricoating or finished with an ammonia-resistant interior lining.
80	4,29	4,26	4,41	B-s2,d0	EW60, EI20	Coating warranty Optimal fire class
120	6,19	6,14	6,29	B-s2,d0	EW90, EI30	Insulated alternative to corrugated sheets due to classic appearance

Sandwich panels – Trapezoidal panels

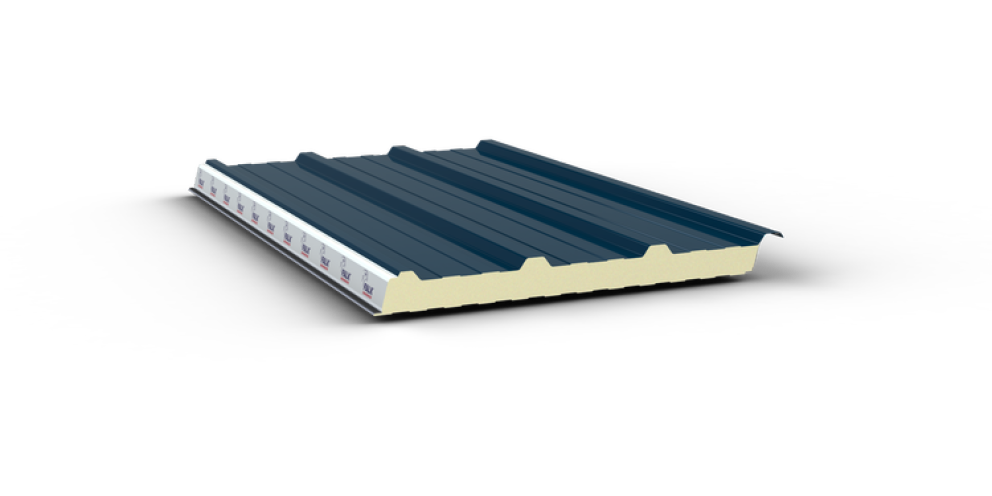

FALK 1100 TR 3+

Core size (mm)	R-value (m2K/W)	Rc-value NEN 1068 (m2K/W)	Rc-value NTA 8800 (m2K/W)	Fire class	Fire protection	Features
40	2,10	2,07	2,16	B-s2,d0	–	Trapezoidal panel with three crowns
50	2,55	2,52	2,63	B-s2,d0	–	Plastisol 200 µm exterior coating in various colours as standard
60	3,02	2,99	3,10	B-s2,d0	EW60, EI20	Interior available in steel sheet with interior/agricoating or finished with an ammonia-resistant interior lining.
80	3,94	3,91	4,04	B-s2,d0	EW90, EI30	Coating warranty
100	4,85	4,82	4,98	B-s2,d0	EW90, EI30	Optimal fire class
130	6,20	6,17	6,39	B-s2,d0	EW90, EI30	Working width of 1100 mm
150	7,10	7,07	7,33	B-s2,d0	EW90, EI30	Most economical choice

FALK 1000 TR

Core size (mm)	R-value (m2K/W)	Rc-value NEN 1068 (m2K/W)	Rc-value NTA 8800 (m2K/W)	Fire class	Fire protection	Features
40	2,19	2,16	2,25	B-s2,d0	EW30	Trapezoidal panel with five crowns
50	2,65	2,61	2,72	B-s2,d0	EW30	Coating outside as standard plastisol 200 mu in various colours
60	3,08	3,05	3,19	B-s2,d0	EW60, EI20	Inside available in steel sheet with interior/agric coating
80	4,02	3,99	4,13	B-s2,d0	EW90, EI30	or in ammonia-resistant ekofoil
100	5,01	4,92	5,07	B-s2,d0	EW90, EI30	Coating warranty
130	6,10	6,06	6,25	B-s2,d0	EW90, EI30	Optimal fire class
150	7,20	7,42	7,42	B-s2,d0	EW90, EI30	Large span achievable

Sandwich panels – Tile-effect panels

KS 1000 RT

Core size (mm)	R-value (m2K/W)	Rc-value NEN 1068 (m2K/W)	Fire class	Fire protection	Features
45	2,22	2,10	B-s2,d0	–	Sandwich panel with tile effect Plastisol 200 µm exterior coating in various colours as standard
60	3,03	2,85	B-s2,d0	EW60, EI20	Available in steel interior with interior coating
80	4,00	3,85	B-s2,d0	EW90, EI30	Half-round steel ridge cap available Optimal fire class
100	5,00	4,85	B-s2,d0	EW90, EI30	Coating warranty Traditional look in a modern sandwich panel

Corrugated sheets

ETERNIT ECOCOLOR

Fire class	Standard colour	Optional colours	Features
A2-s1,d0	Anthracite	Brick red Anthracite-black Cloud grey Chestnut brown Coral red	Optimal vapour permeability Easy to combine with translucent-white panels Rot and rust free Low noise 10-year warranty Various attachments as standard Cheapest option
